SL82LW TRANSAXLE

The SL82LW gearbox is the perfect extension of the SL75LW: it uses the same mounting and fixing points, enabling instant interchangeability. With optimised weight and improved internal mechanics, the SL82LW gearbox offers attractive technical characteristics that exceed the capacity limits of the SL75LW.



Contact SADEV





TECHNICAL SPECS

  • 6 speed sequential gearbox + 1 reverse gear
  • Manual sequential gear selection
  • External selector rocker (optional)
  • Bevel gear ratio : 9x30
  • The bevel gear is cut and grinded in house on our CNC units
  • Wide range of ratios available
  • Straight cut gears
  • Dog ring gear engagement
  • Interchangeable gear ratios
  • High strength carburizing steel
  • Gear teeth grinded with optimized profile
  • Shot peening on internal parts
  • Specific input shaft
  • Free differential (limited slip differential optional)
  • Ramp and plate system - 3 discs type
  • Preload made by spring washer
  • Wide range of ramp plates available
  • Contactless gear position sensor
  • Splash lubrication system
  • Oil pump integrated (optional)
  • Oil suction screen
  • AS7G aluminum casings
  • Weight (input shaft included) : 42 Kg - 92 lbs

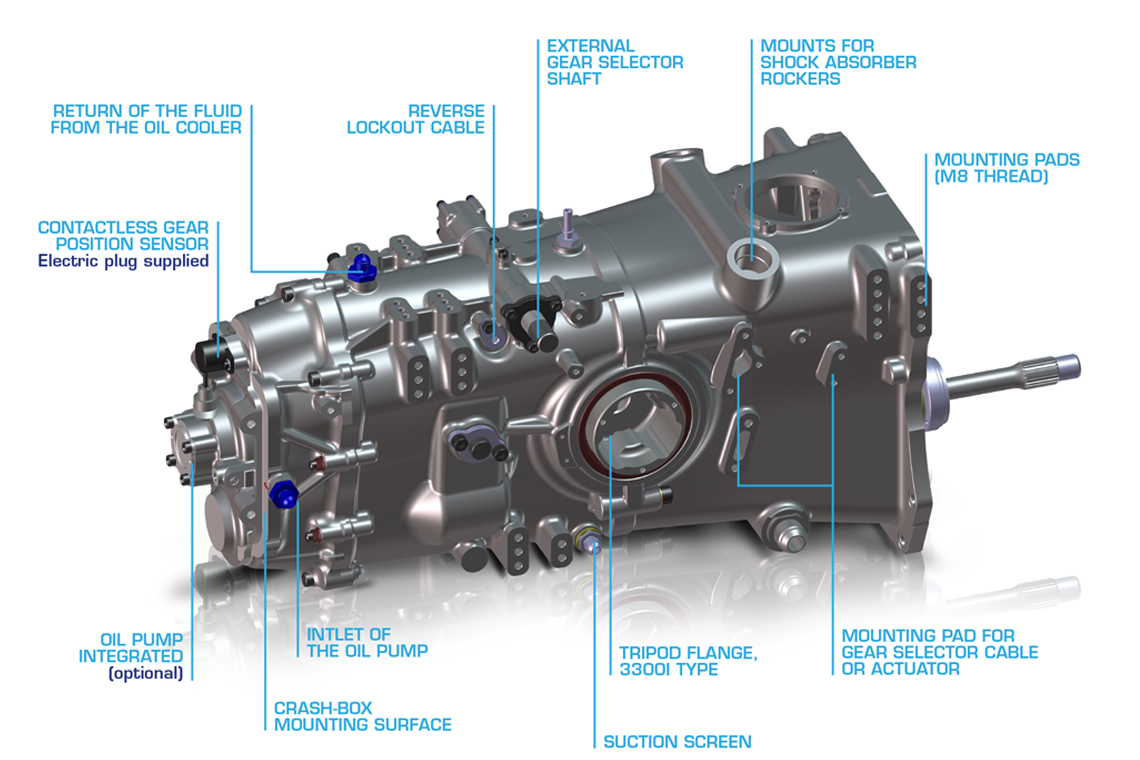

imgdetail1eng1140x760px_sl82lw_01102018

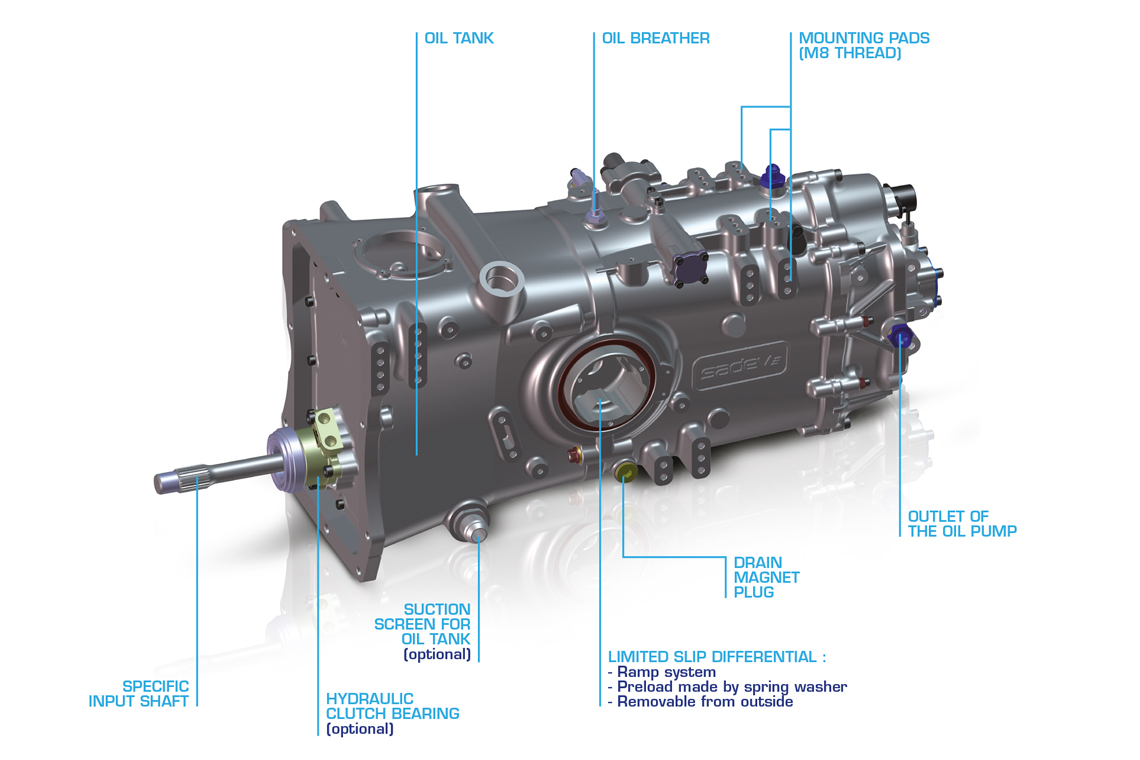

imgdetail2eng1140x760px_sl82lw_01102018

Accessories

  • Push-pull cable
  • Mounting plate
  • Hydraulic paddle-shift
  • Drive shafts

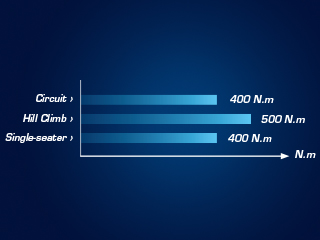

Applications

  • Circuit
  • Hill Climb
  • Single-seater

Engine torque 500 N.m
