SLR82-14 TRANSAXLE

With its bold, streamlined design, the SLR82-14 is part of the latest generation of SADEV gearboxes, combining experience with new technology. Our design and production tools enable an optimised footprint, increased robustness and reduced weight. And because cars are constantly evolving, the SLR82-14 has to be ahead of the curve, offering integrated semi-automatic control and gears that can handle turbocharged engines.

TECHNICAL SPECS

  • 6 speed sequential gearbox + 1 reverse gear
  • Manual sequential gear selection (semi-auto optional)
  • Bevel gear ratio : 9x30 or 8x31
  • The bevel gear is cut and grinded in house on our CNC units
  • Wide range of ratios available
  • Straight cut gears
  • Dog ring gear engagement
  • Interchangeable gear ratios
  • High strength carburizing steel
  • Gear teeth grinded with optimized profile
  • Shot penning on internal parts
  • Specific input shaft
  • Hydraulic clutch bearing (optional)
  • Limited slip differential (free differential optional)
  • Ramp and plate system - 3 discs type
  • Preload made by spring washer
  • Wide range of ramp plates available
  • Contactless gear position sensor
  • Splash lubrication system
  • Oil pump integrated
  • Oil suction screen
  • Painted AS7G aluminum casings
  • Weight (input shaft included) : 48 kg - 105 lbs

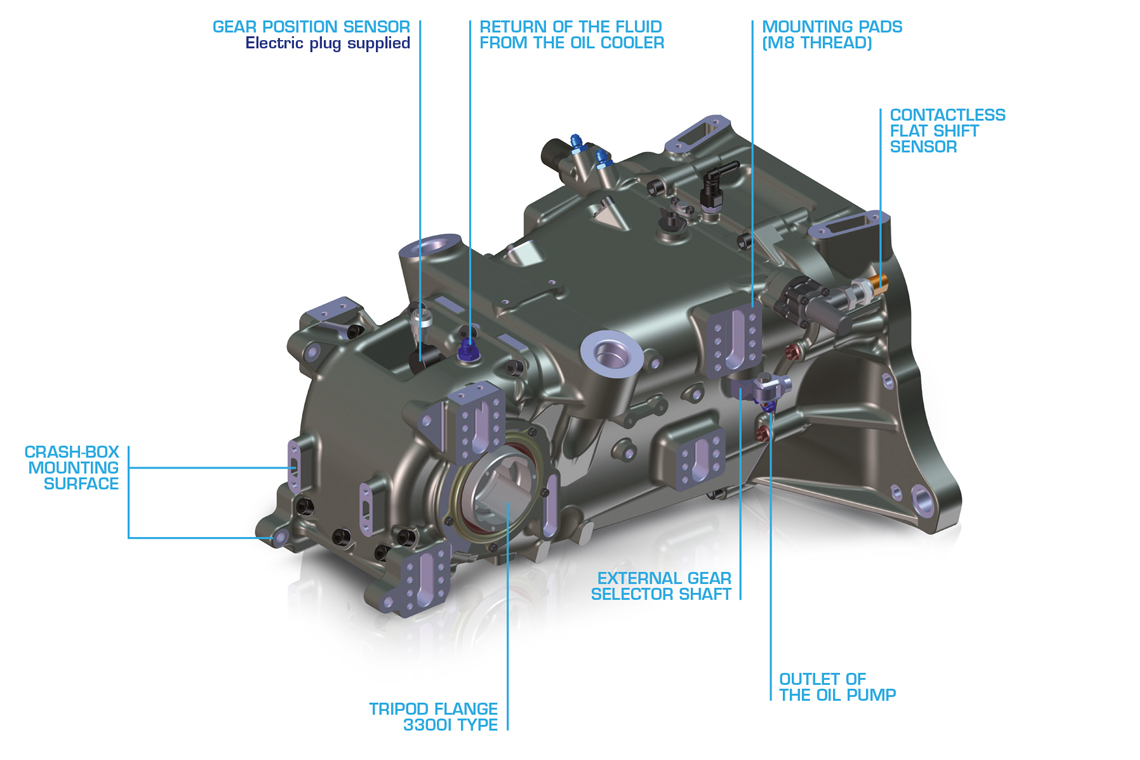

imgdetail1eng1140x760px_slr8214_01102018

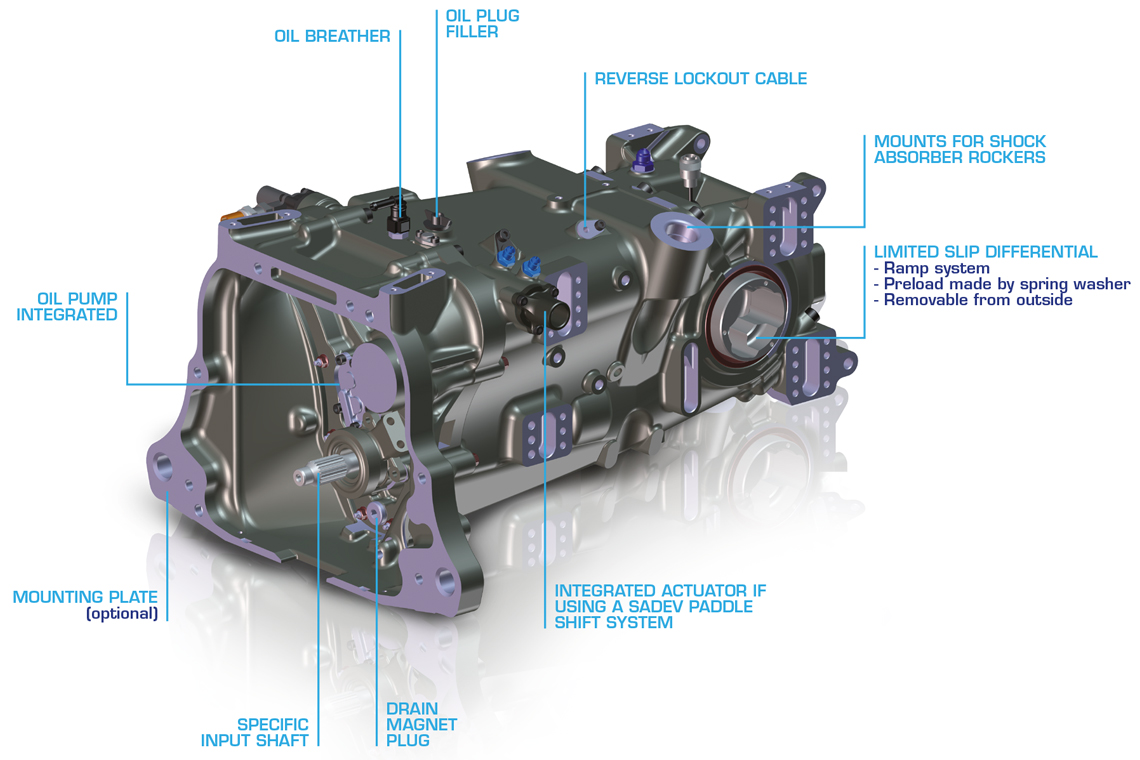

imgdetail2eng1140x760px_slr8214_01102018

Accessories

  • Gear display
  • Mounting plate
  • Push-pull cable
  • Drive shafts

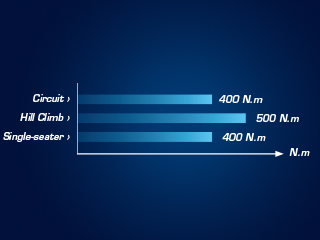

Applications

  • Circuit
  • Hill Climb
  • Single-seater

Engine torque 500 N.m
