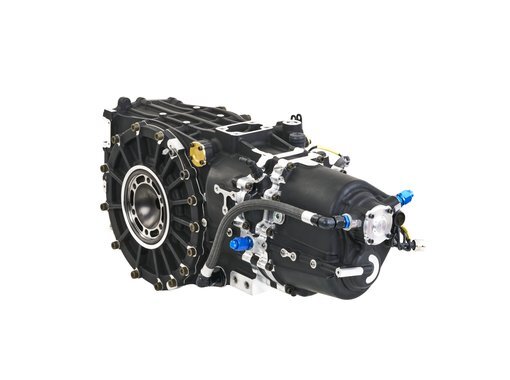

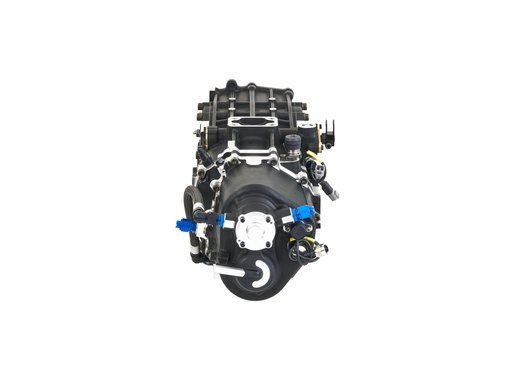

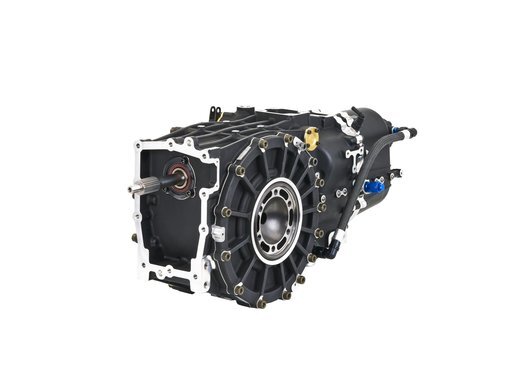

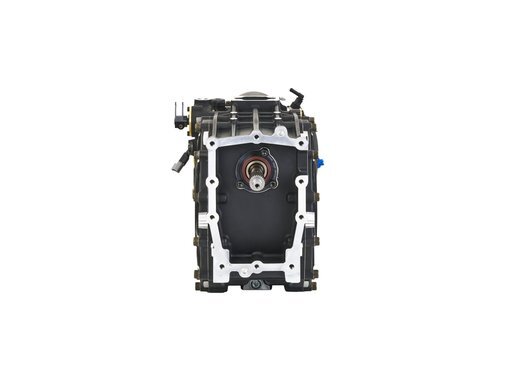

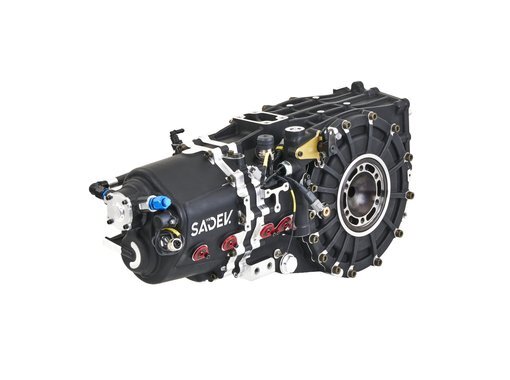

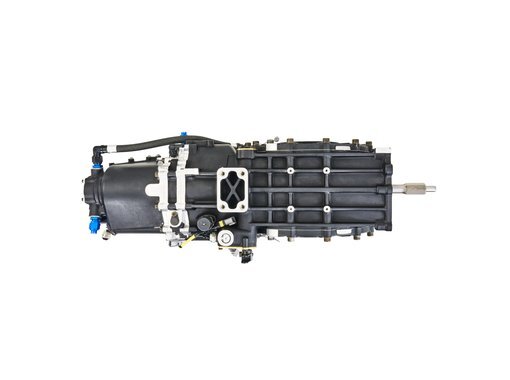

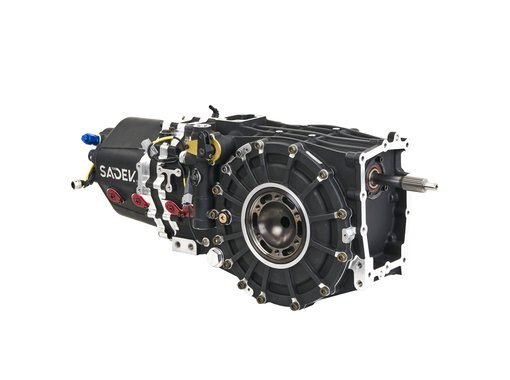

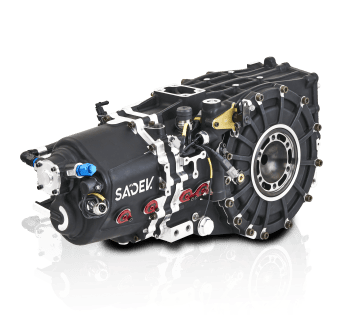

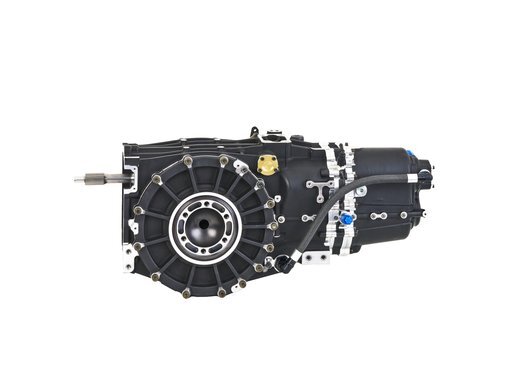

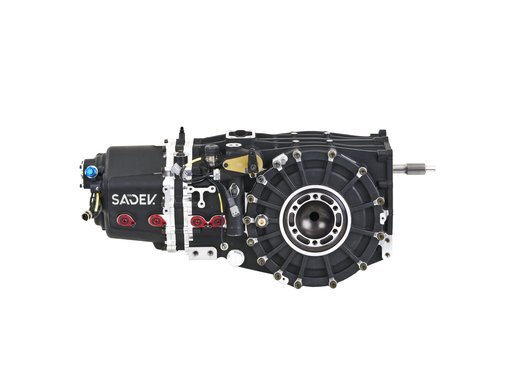

SL923 TRANSAXLE
The SL923 has been specifically designed to take on the harshest desert sand environments the world has to offer. Using our 50+ years of expertise, along with Dynamic FEA technology, every aspect of the SL923 has been optimized for performance and durability. Features such as added ground clearance, narrow flange width, precision ground ring and pinion, and directed oiling system make this a perfect product for your high horsepower desert vehicle.

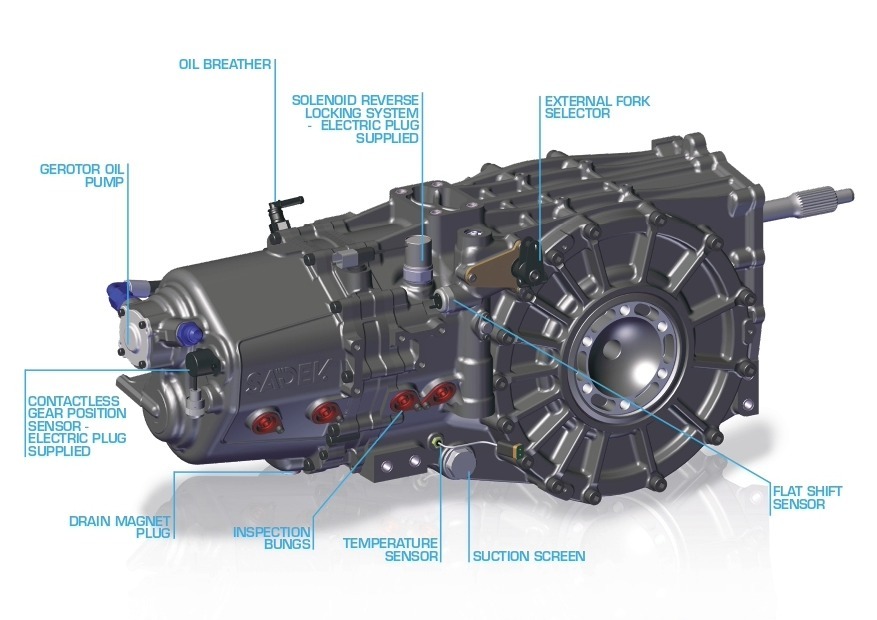

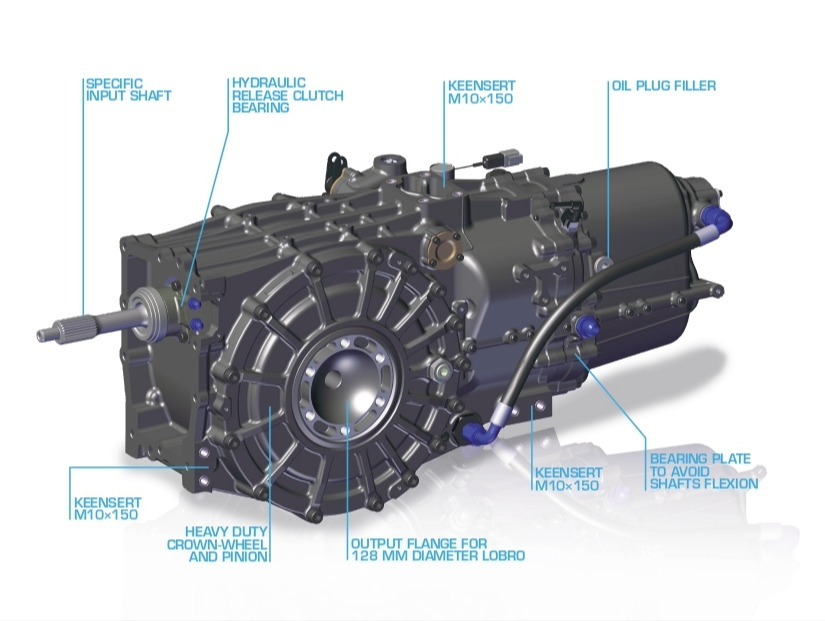

TECHNICAL SPECS
- 5 or 6 speed sequential gearbox + 1 reverse gear
- Manual sequential gear selection
- Mechanical sequential control
- Ring and pinion ratio : 9x34, 9x37 or 9x42
- In house cut and ground ring and pinion on our CNC units
- Wide range of ratios available
- Straight cut gears
- Inspection bungs
- Interchangeable gear ratios
- High strength carburizing steel
- Gear teeth ground with optimized profile
- Shot peening on internal parts
- Specific input shaft
- Hydraulic clutch bearing
- Free differential (limited slip differential optional)
- Reverse lockout solenoïd
- Flat shift sensor
- Integrated oil pump
- Lubrication lines through the casing
- Directed and pressurised lubrication on the gears and
- bevel gear
- Fittings to connect external oil cooler
- Oil suction screen
- Magnetic drain plugs
- Painted AS7G aluminum casings
- Ouput for axles : flange for Ø128 mm Lobro
- Casing joint faces sealed with O'rings
- Weight (input shaft included) : 80 Kg - 176 lbs
Accessories
- Gear display
- Adaptor plate
- Gearlever
- Axles shaft
- Paddle-shift
Applications
- Rally-raid

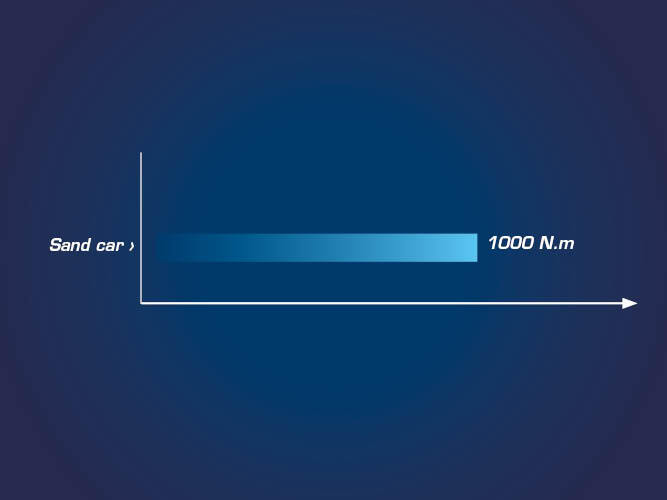

Engine torque 1000 N.m
