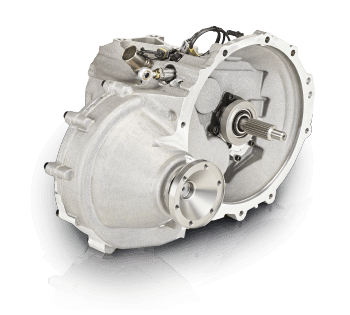

ST75LW-photo01

ST75 LW TRANSVERSE

The ST75 LW has been designed in order to renew SADEV's bestseller with the updated manufacturing process. The new version of the ST75-14 allows SADEV to make a technological step forward and offers the most elaborated product of its range (oil pump, differential, ratios). The optimisation of the design of the casings allow SADEV to gain weight by keeping the same robustness, all at an unbeatable price.



Contact SADEV



TECHNICAL SPECS

  • 5 or 6 speed sequential gearbox + 1 reverse gear
  • Manual sequential gear selection
  • Wide range of final drives available
  • Wide range of ratios available
  • Straight cut gears
  • Gear engagement made by dogs
  • Interchangeable gear ratios
  • High strength carburizing steel
  • Gear teeth grinded with optimized profile
  • Shot penning on internal parts
  • Specific input shaft
  • Limited slip differential (free differential optional)
  • Ramp and plate system - 3 discs type
  • Preload made by belleville spring washer
  • Wide range of ramp plates available
  • Reverse lockout cable (solenoïd system optional)
  • Contactless gear position sensor
  • Flat shift sensor
  • Splash lubrication system
  • Integrated oil pump (optional)
  • Oil suction screen
  • Magnetic drain plugs
  • AS7G aluminum casings
  • Weight (input shaft included): 32kg - 70lbs
ST75LW TRANSVERSE
ST75LW TRANSVERSE BIS

Accessories

  • Gear display
  • Driven tripod flange
  • Adaptator plate
  • Gearlever
  • Drive shafts

Applications

  • Circuit
  • Hill Climb
  • Rally
  • Rallycross

Engine torque 380 N.m
