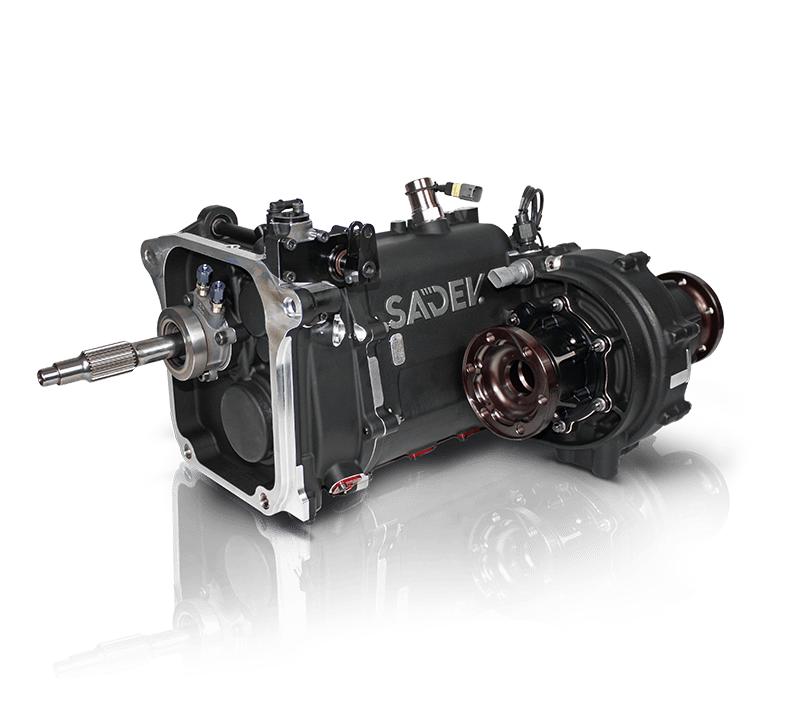

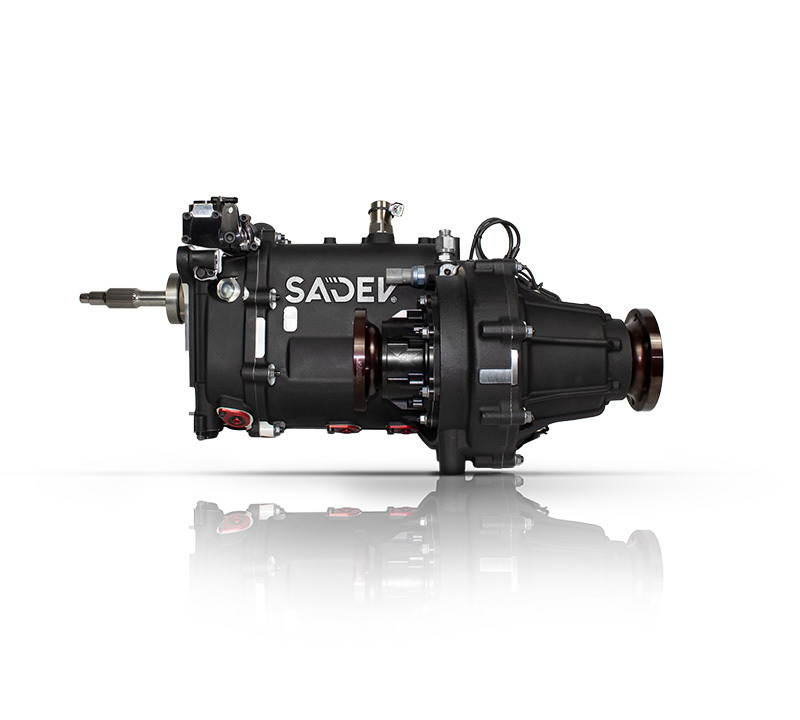

SC924 TRANSAXLE

Tackling even the trickiest terrain, the SC924 is a benchmark in the off-road world. Its weight-focused design, compactness and robustness make it the weapon of choice for rally raid. Innovations such as the low-friction differential and the optimised tooth profiles make it the ideal solution for your future projects.

TECHNICAL SPECS

  • 6 speed sequential gearbox + 1 reverse gear
  • Manual sequential gear selection
  • Wide range of final drives available
  • Wide range of ratios available
  • Straight cut gears
  • Dog ring gear engagement
  • Interchangeable gear ratios
  • High strength carburizing steel
  • Gear teeth grinded with optimized profile
  • Shot penning on internal parts
  • Specific input shaft
  • Central limited slip differential (optional low friction)
  • Ramp and plate system
  • Wide range of ramp plates available
  • Differential locking system
  • Reverse lockout cable (solenoïd system optional)
  • Contactless gear position sensor
  • Contactless flat shift sensor
  • Directed and pressurised lubrication on the gears
  • Oil suction screen
  • Magnetic drain plugs
  • Painted AS7G aluminum casings
  • Angle possible -15° to 195°
  • Weight (input shaft included) : 58 Kg - 127 lbs

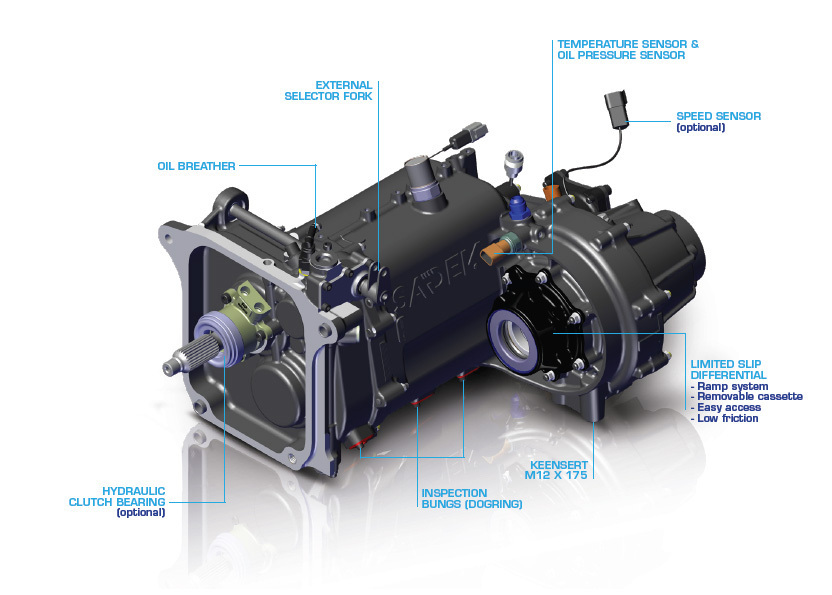

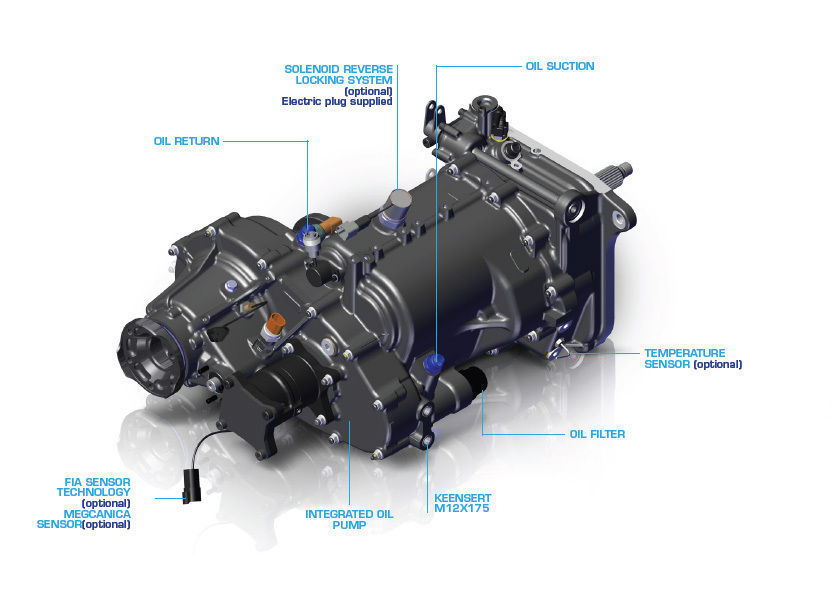

imgdetail1eng1140x760px_sc924_01102018
imgdetail2eng1140x760px_sc924_01102018

Accessories

  • Gearlever
  • Gear Display
  • Bell housing
  • Propshaft

Applications

  • Drift
  • Rally-raid

Engine torque 975 N.m
