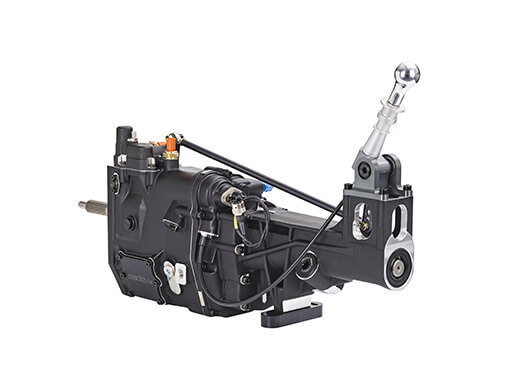

SCL82-17 IN-LINE

The best seller in SADEV's in-line gearbox range, the SCL82-17 offers an ultra-powerful, affordable solution for multiple uses. Its small size means it can fit into Caterham-type cars. Thanks to its rally, rallycross and track results, the SCL82-17 is universally recognised for its quality and robustness.

TECHNICAL SPECS

  • 6 speed sequential gearbox + 1 reverse gear
  • Manual sequential gear selection
  • Direct gear ratio : 19x20 or 19x22
  • Wide range of ratios available
  • Straight cut gears
  • Dog ring gear engagement
  • Interchangeable gear ratios
  • High strength carburizing steel
  • Gear teeth grinded with optimized profile
  • Shot penning on internal parts
  • Specific input shaft
  • Hydraulic clutch bearing (optional)
  • Reverse lockout cable
  • Contactless gear position sensor
  • Contactless flat shift sensor
  • Splash lubrication system
  • Fittings to connect external oil cooler
  • Oil suction screen
  • Magnetic drain plugs
  • Painted AS7G aluminum casings
  • Casing joint faces sealed with O'rings
  • 1315 U-joint or BMW Guibo flex disc flange
  • Weight (long tail version with gearlever) : 30 Kg - 66 lbs
  • Weight (short version) : 27 Kg - 59 lbs

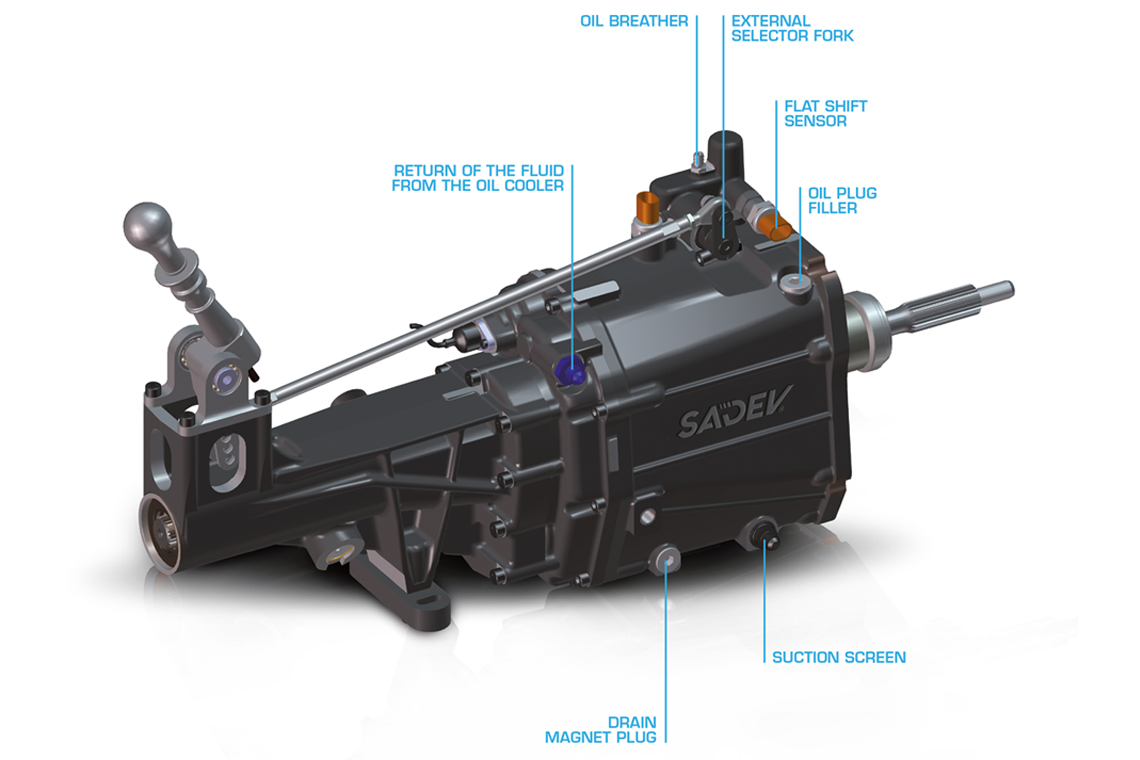

imgdetail1eng1140x760px_scl8217_01102018

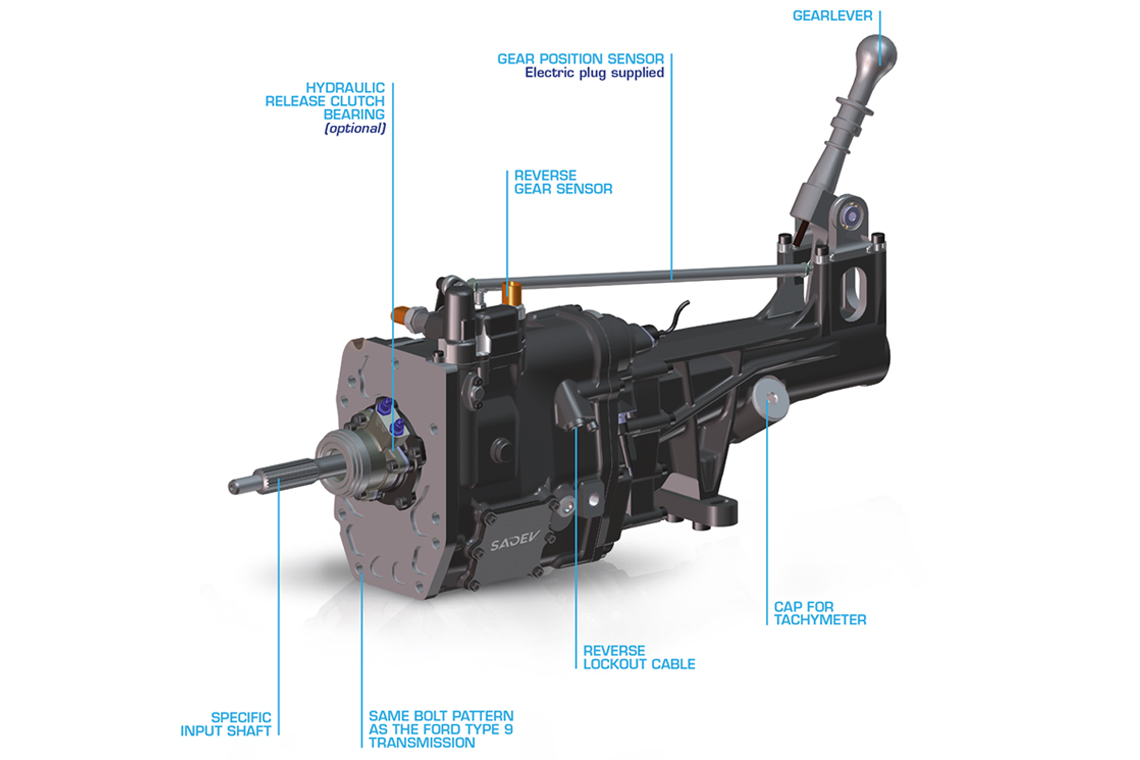

imgdetail2eng1140x760px_scl8217_01102018

Accessories

Mounting plate
Gear Display
Hydraulic paddle-shift

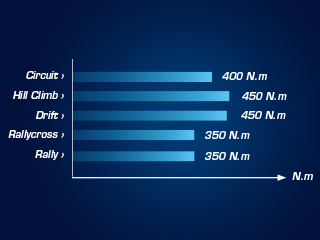

Applications

  • Circuit
  • Hill Climb
  • Rally
  • Rallycross
  • Drift

Engine torque 450 N.m
