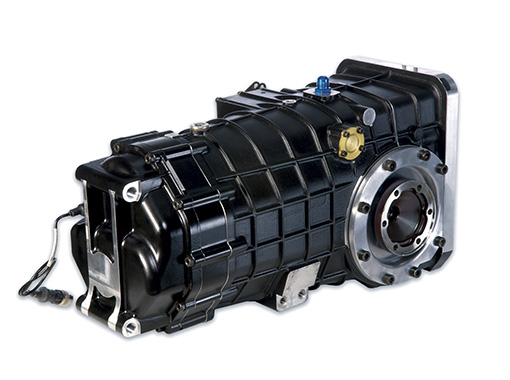

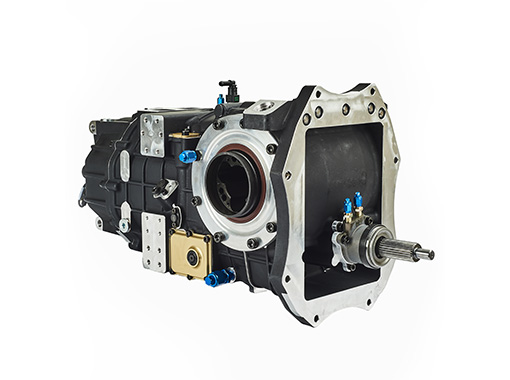

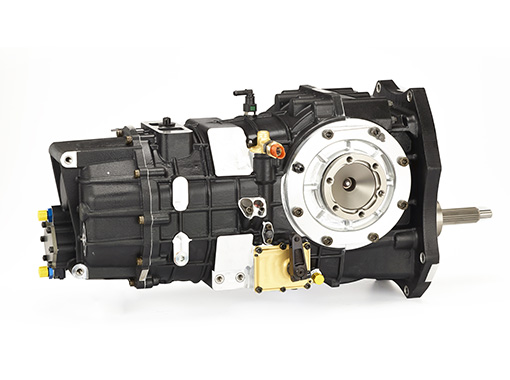

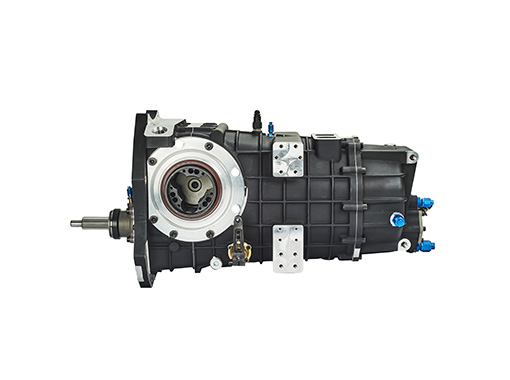

SL90-20 2WD TRANSAXLE
Flexibility is the best word to describe the SL9O-2O transmission. Its variety of adaptable parts enables us to build a gearbox tailored to your needs. As well as accepting heavy loads, it comes in several versions: with or without load-bearing casing, 5 or 6 speeds, self-locking differential cartridge etc.
TECHNICAL SPECS
- 6 speed sequential gearbox + 1 reverse gear
- Bevel gear ratio : 9x35 or 10x31
- The bevel gear is cut and grinded in house on our CNC units
- Wide range of ratios available
- Straight cut gears
- Dog ring gear engagement
- Interchangeable gear ratios
- High strength carburizing steel
- Gear teeth grinded with optimized profile
- Shot peening on internal parts
- Specific input shaft

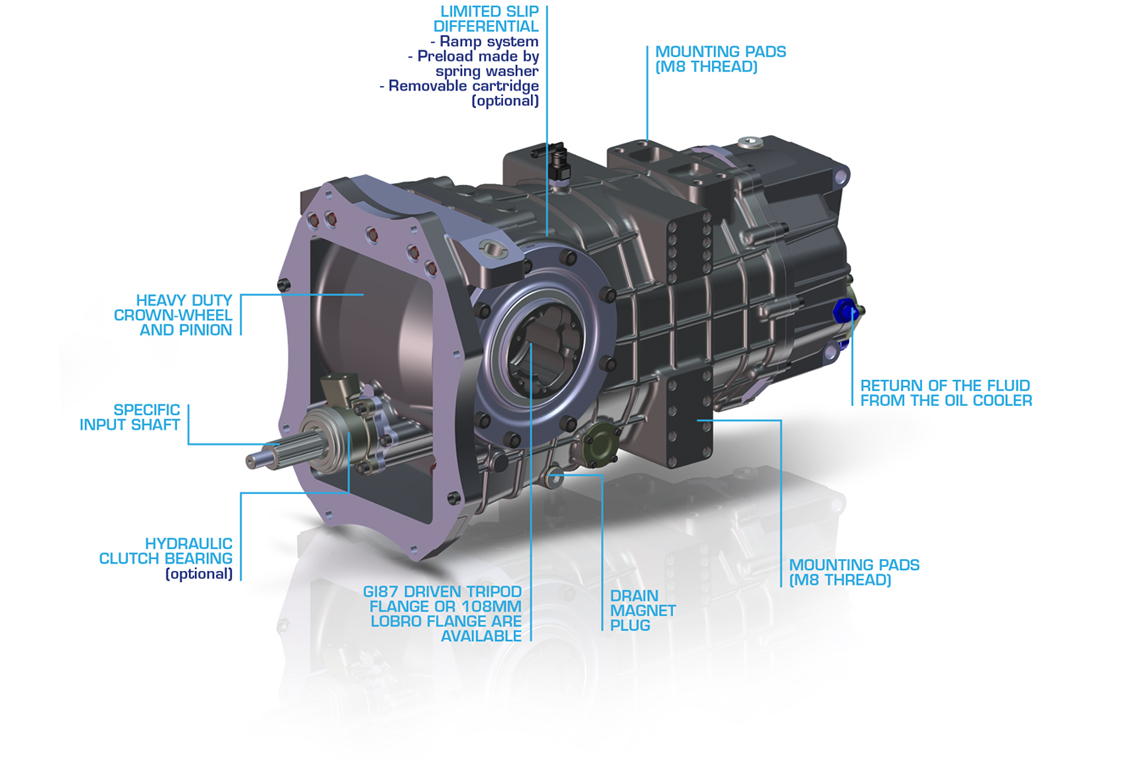

- Limited slip differential
- Ramp and plate system - 3 discs type
- Preload made by spring washer
- Wide range of ramp plates available
- Reverse lockout cable

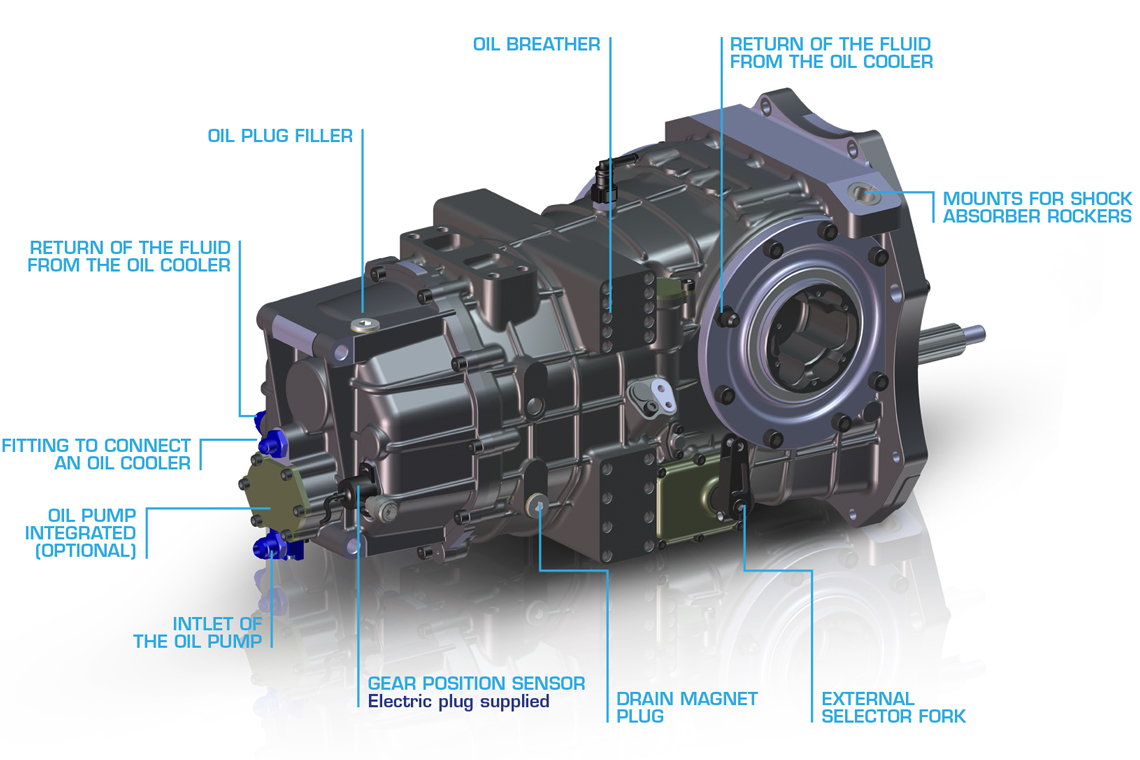

- Oil pump integrated (optional)
- Internal lubrication ramp (optional)
- Painted AS7G aluminum casings
- Assembled with spacers and studs
- Case joint faces sealed with O'rings
- Weight (input shaft included) : 60 Kg - 132 lbs
![imgdetail1eng1140x760px__sl90202wd_01102018](/media/imgdetail1eng1140x760px__sl90202wd_01102018__087442900_1027_02102018.jpg)
![imgdetail2eng1140x760px__sl90202wd_01102018](/media/imgdetail2eng1140x760px__sl90202wd_01102018__044545800_1027_02102018.jpg)
Accessories
- Mounting plate
- Gear display
- Drive shafts

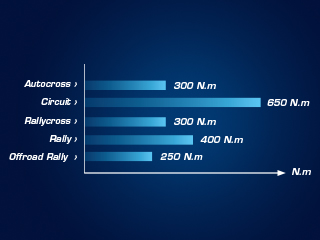

Applications
- Circuit
- Rally
- Rallycross
- Autocross
- Offroad Rally
Engine torque 650 N.m
