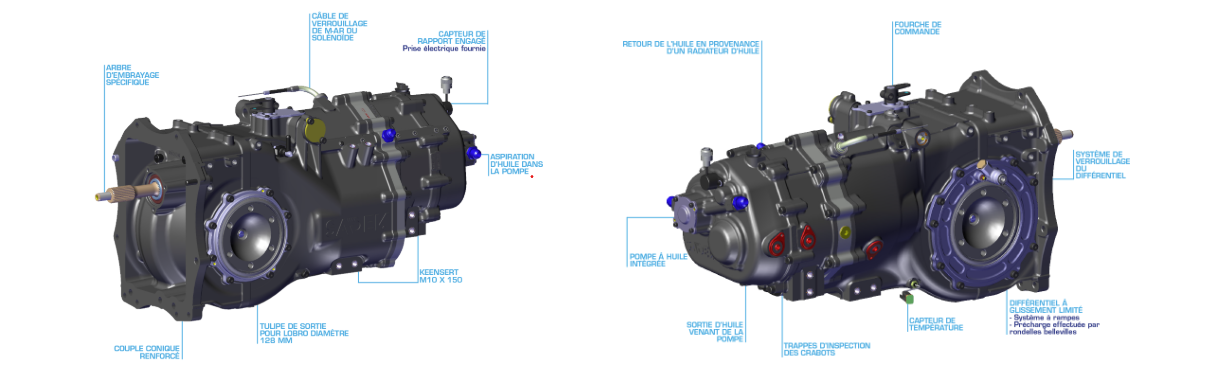

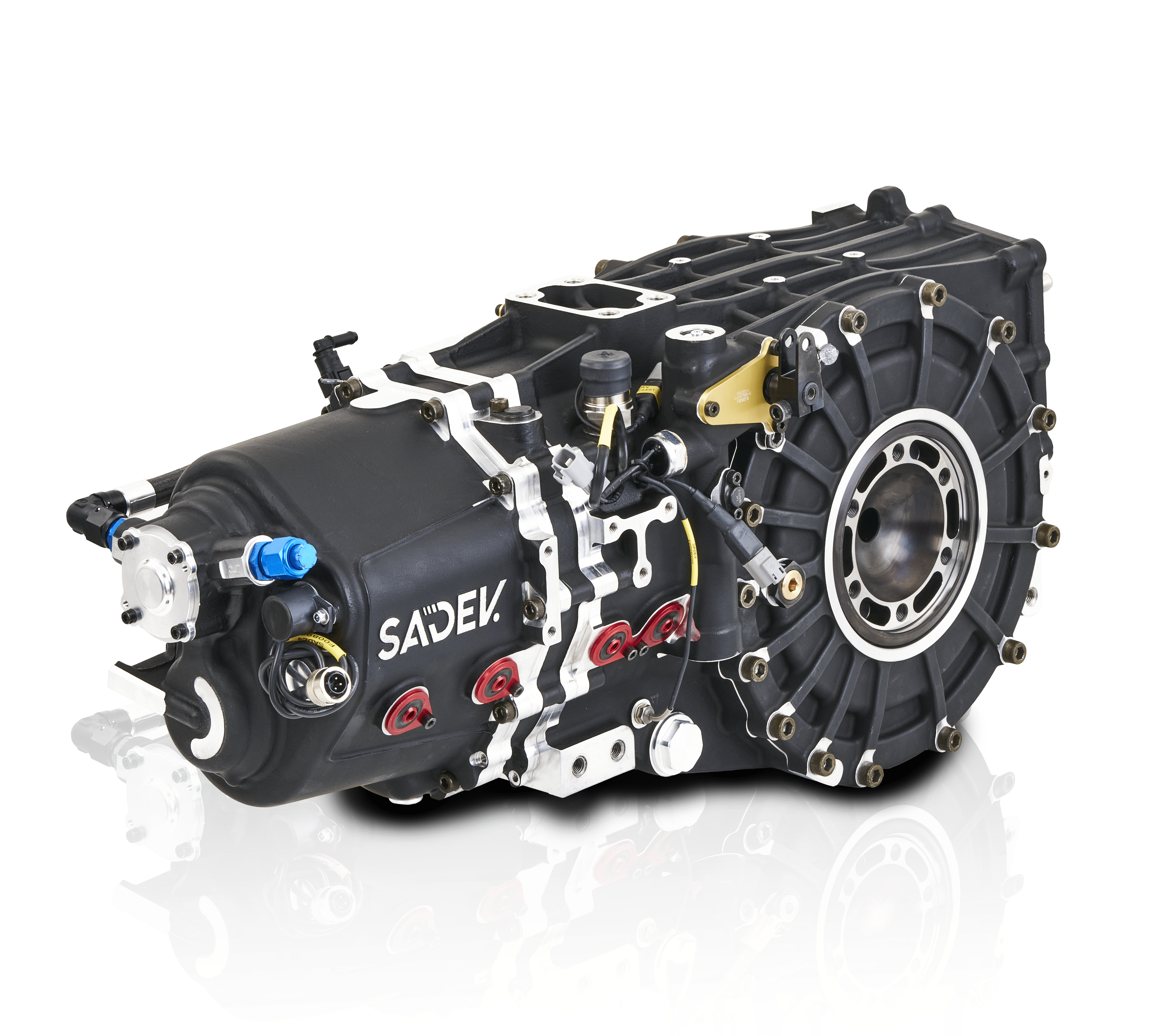

SL923 TRANSAXLE OFF-ROAD

TECHNICAL SPECS

• 5 or 6 speed sequential gearbox + 1 reverse gear
• Manual sequential gear selection
• Mechanical sequential control
• Ring and pinion ratio : 9x34, 9x37 or 9x42
• In house cut and ground ring and pinion on our CNC units
• Wide range of ratios available
• Straight cut gears
• Inspection bungs
• Interchangeable gear ratios
• High strength carburizing steel
• Gear teeth ground with optimized profile
• Shot peening on internal parts
• Specific input shaft
• Hydraulic clutch bearing

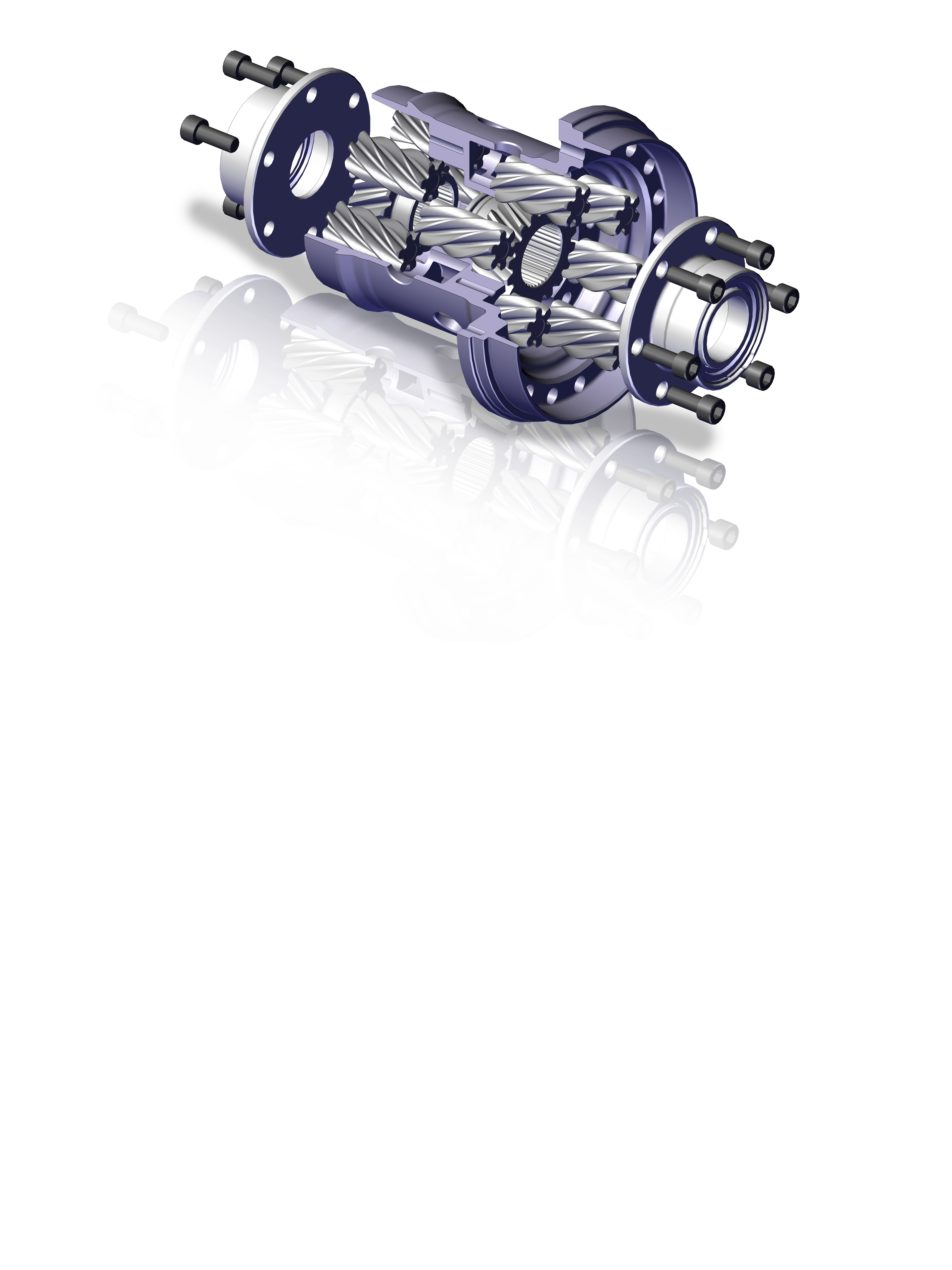

• Free differential (limited slip differential optional)
• Reverse lockout solenoïd
• Flat shift sensor
• Integrated oil pump
• ​Lubrication lines through the casing
• Directed and pressurised lubrication on the gears and
• bevel gear
• Fittings to connect external oil cooler
• Oil suction screen
• Magnetic drain plugs
• Painted AS7G aluminum casings
• Ouput for axles : flange for Ø128 mm Lobro
• Casing joint faces sealed with O'rings
• Weight (input shaft included) : 80 Kg - 176 lbs
