ST82-14 TRANSVERSE

The bestseller in the transverse range, the ST82-14 is loaded with the latest technology. Designed for turbocharged engines such as 1.6L turbo and benefiting from all SADEV's experience, it combines optimised architecture with a small footprint and a low weight. Incorporating all the latest innovations such as paddle-shift, the ST82-14 will prove a formidable solution for your future projects.

TECHNICAL SPECS

  • 6 speed sequential gearbox + 1 reverse gear
  • Manual sequential gear selection (semi-auto optional)
  • Wide range of final drives available
  • Wide range of ratios available
  • Straight cut gears
  • Dog ring gear engagement
  • Interchangeable gear ratios
  • High strength carburizing steel
  • Gear teeth grinded with optimized profile
  • Shot penning on internal parts
  • Specific input shaft
  • Central limited slip differential
  • Ramp and plate system - 3 discs type
  • Preload made by spring washer
  • Wide range of ramp plates available
  • Reverse lockout cable (solenoïd system optional)
  • Contactless gear position sensor
  • Contactless flat shift sensor
  • Splash lubrication system
  • Oil pump integrated (optional)
  • Oil suction screen
  • Magnetic drain plugs
  • Painted AS7G aluminum casings
  • Case joint faces sealed with O'rings
  • Weight (input shaft included) : 35 Kg - 77 lbs

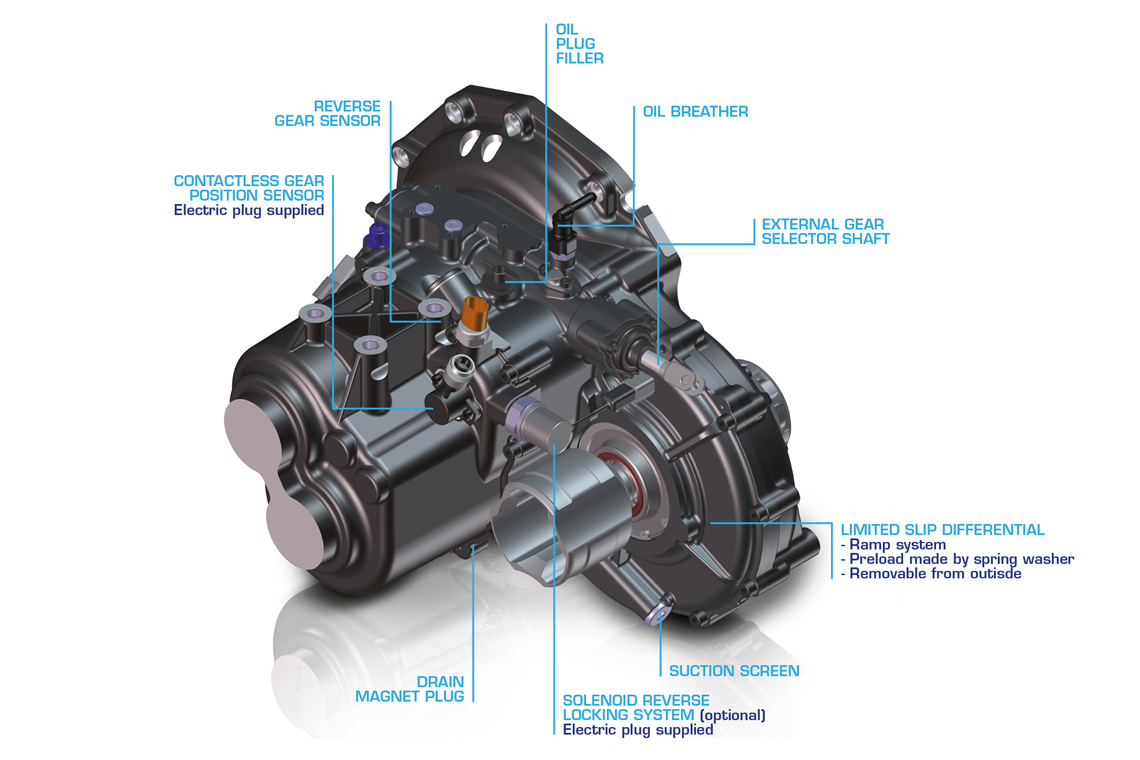

imgdetail2eng1140x760px__st8214_01102018

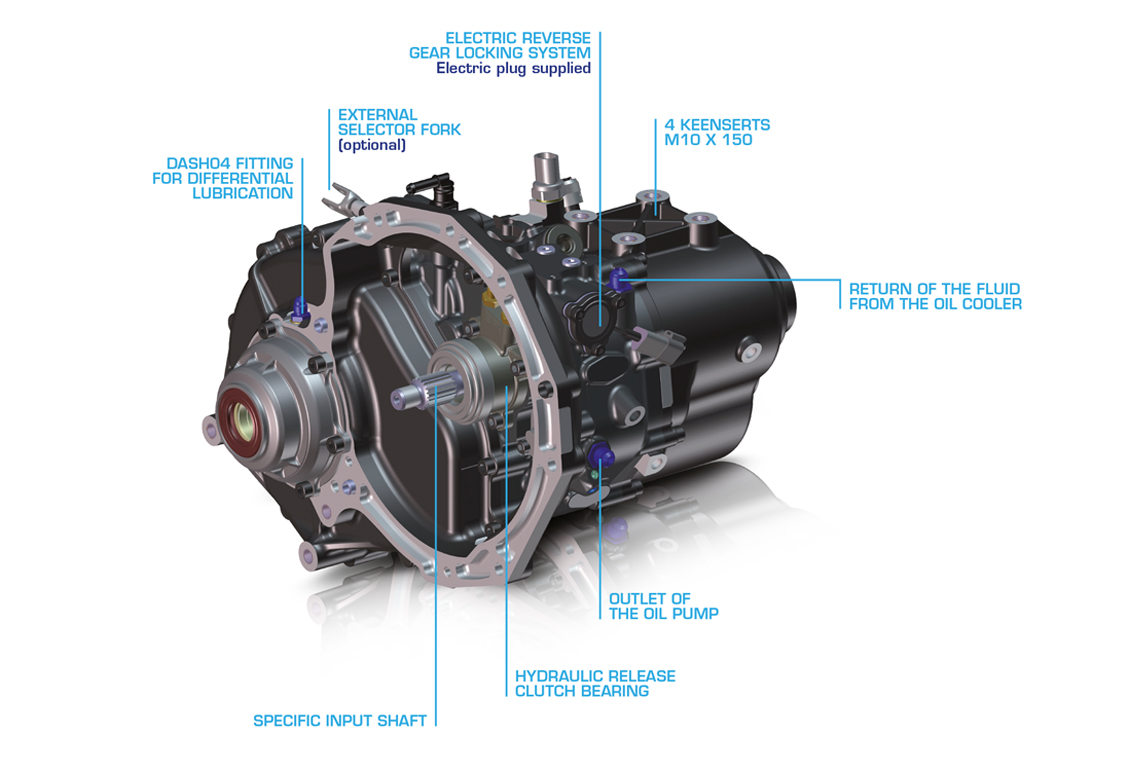

imgdetail1eng1140x760px__st8214_01102018

Accessories

  • Gear display
  • Driven tripod flange
  • Mounting plate
  • Gearlever
  • Hydraulic paddle-shift
  • Drive shafts

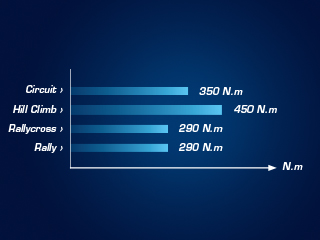

Applications

  • Circuit
  • Hill Climb
  • Rally
  • Rallycross

Engine torque 450 N.m
