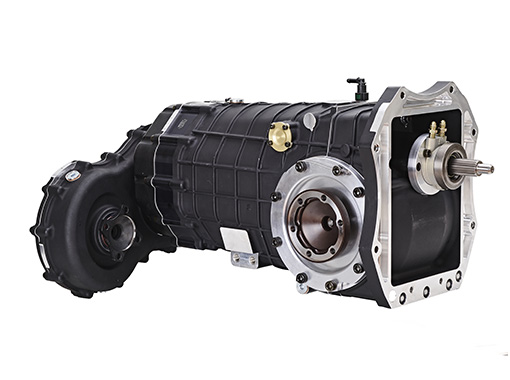

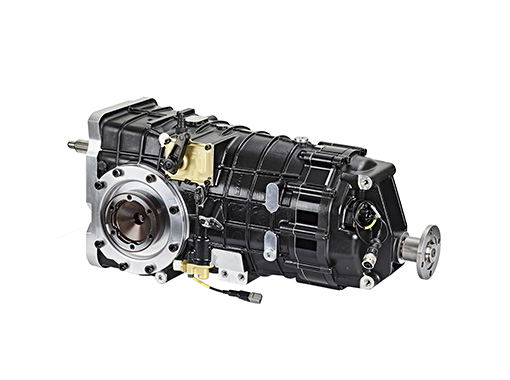

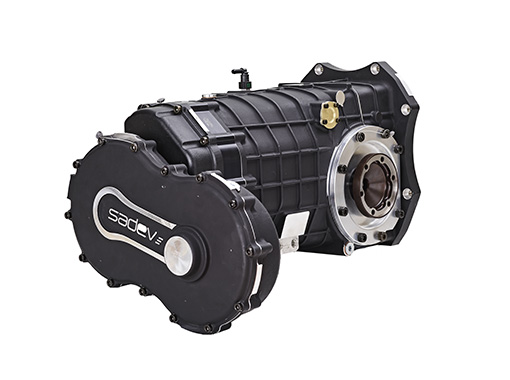

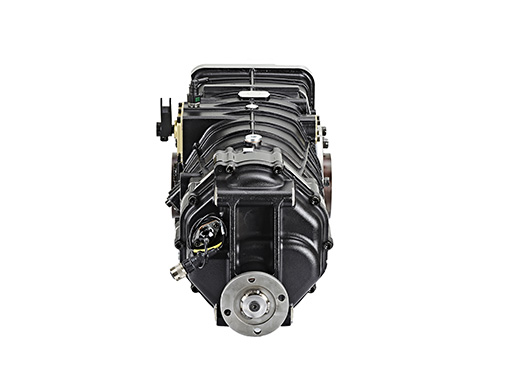

SL90-20 4WD TRANSAXLE
Flexibility is the best word to describe the SL9O-2O transmission. Its variety of adaptable parts enables us to build a gearbox tailored to your needs. As well as accepting heavy loads, it comes in several versions: with or without load-bearing casing, 4WD central engine, 4WD overhang engine.
TECHNICAL SPECS
- 6 speed sequential gearbox + 1 reverse gear
- Manual sequential gear selection
- Bevel gear ratio : 9x35 or 10x31
- The bevel gear is cut and grinded in house on our CNC units
- Wide range of ratios available
- Straight cut gears
- Dog ring gear engagement
- Interchangeable gear ratios
- High strength carburizing steel
- Gear teeth grinded with optimized profile
- Shot peening on internal parts

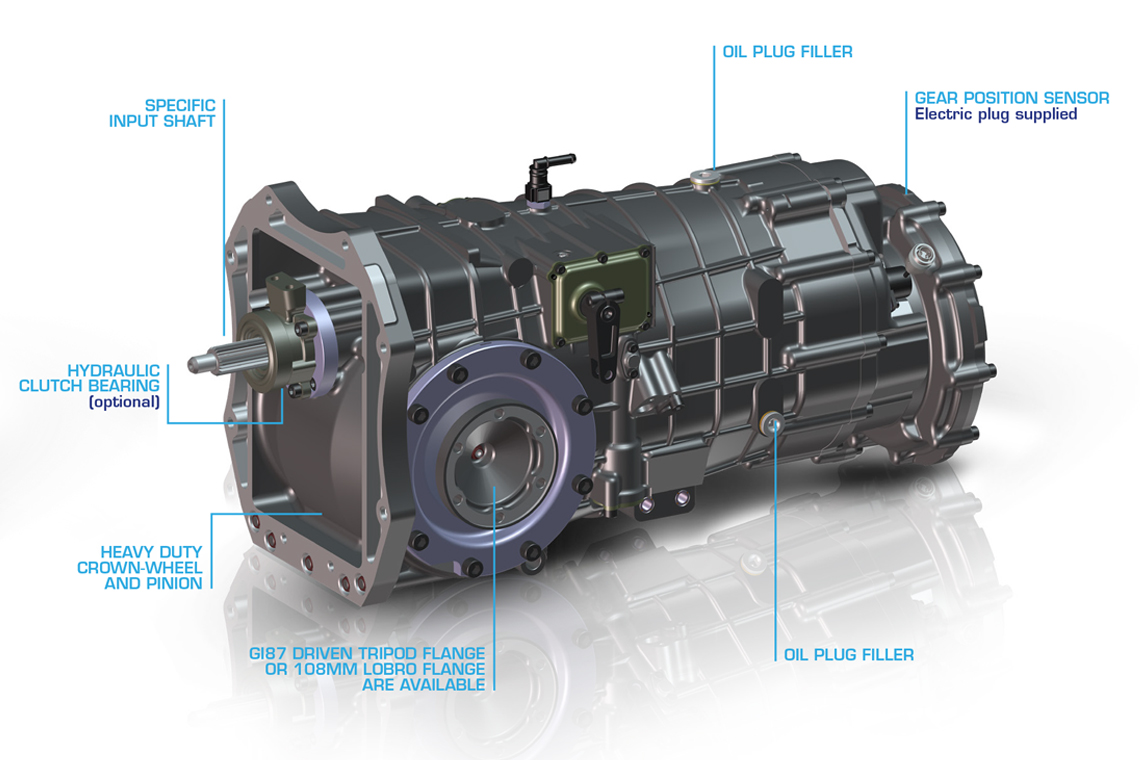

- Specific input shaft
- Limited slip differential
- Ramp and plate system - 3 discs type
- Preload made by spring washer
- Wide range of ramp plates available
- Reverse lockout cable (solenoïd system optional)

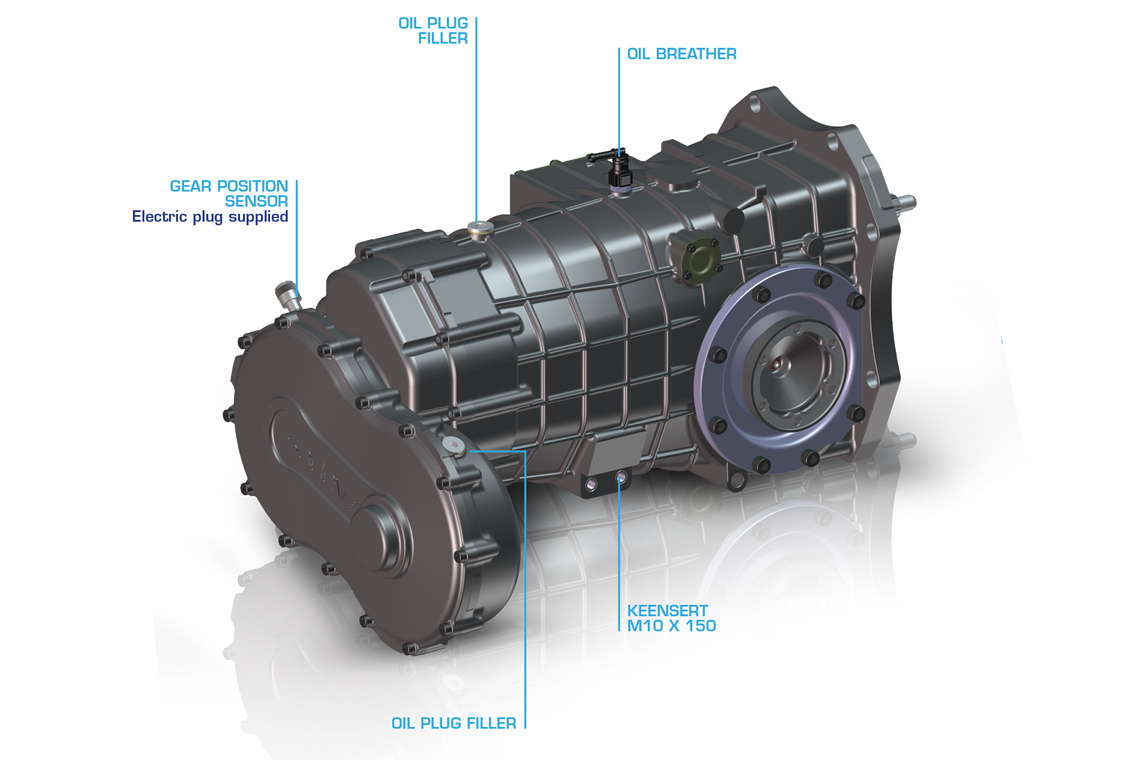

- Flat shift sensor
- Splash lubrication system
- Magnetic drain plugs
- Painted AS7G aluminum casings
- Case joint faces sealed with O'rings
- Weight (input shaft included) : 67 Kg - 148 lbs
Accessories
- Gear display
- Mounting plate
- Drive shafts
- Propshaft

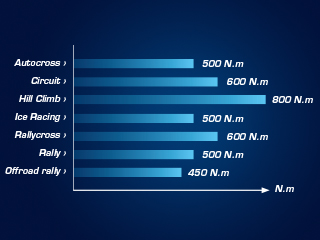

Applications
- Circuit
- Hill Climb
- Rally
- Rallycross
- Autocross
- Offroad Rally
- Ice Racing
Engine torque 800 N.m
