SLR90-20 TRANSAXLE

Specially designed for Circuit, GT and Single Seater racing, the SLR90-20 combines innovation and optimized architecture.

We set out to create an all new transmission with these key changes in mind: reduction and better distribution of masses, smaller dimensions, robustness and improved capacity, the SLR90-20 is tailored to the current needs of the targeted disciplines.

Its design is daring : our design department has opted for a rear differential to grant a better weight distribution. And, as far as the driver safety is a priority for SADEV, our designers have studied extensively the casings so that a larger rear crash box can be integrated and meet the LMP requirements.



Contact SADEV

TECHNICAL SPECS

  • 6 speed sequential gearbox + 1 reverse gear
  • Manual sequential gear selection (semi-auto optional)
  • Bevel gear ratio : 8x31 or 10x31
  • The bevel gear is cut and grinded in house on our CNC units
  • Wide range of ratios available
  • Straight cut gears
  • Dog ring gear engagement
  • Interchangeable gear ratios
  • High strength carburizing steel
  • Gear teeth grinded with optimized profile
  • Shot peening on internal parts
  • Specific input shaft
  • Hydraulic clutch bearing (optional)
  • Limited slip differential (free differential optional)
  • Ramp and plate system - 3 discs type
  • Preload made by spring washer
  • Wide range of ramp plates available
  • Reverse lockout cable
  • Contactless gear position sensor
  • Splash lubrication system
  • Oil pump integrated
  • Painted AS7G aluminum casings
  • Weight (input shaft included) : 57 kg - 125 lbs

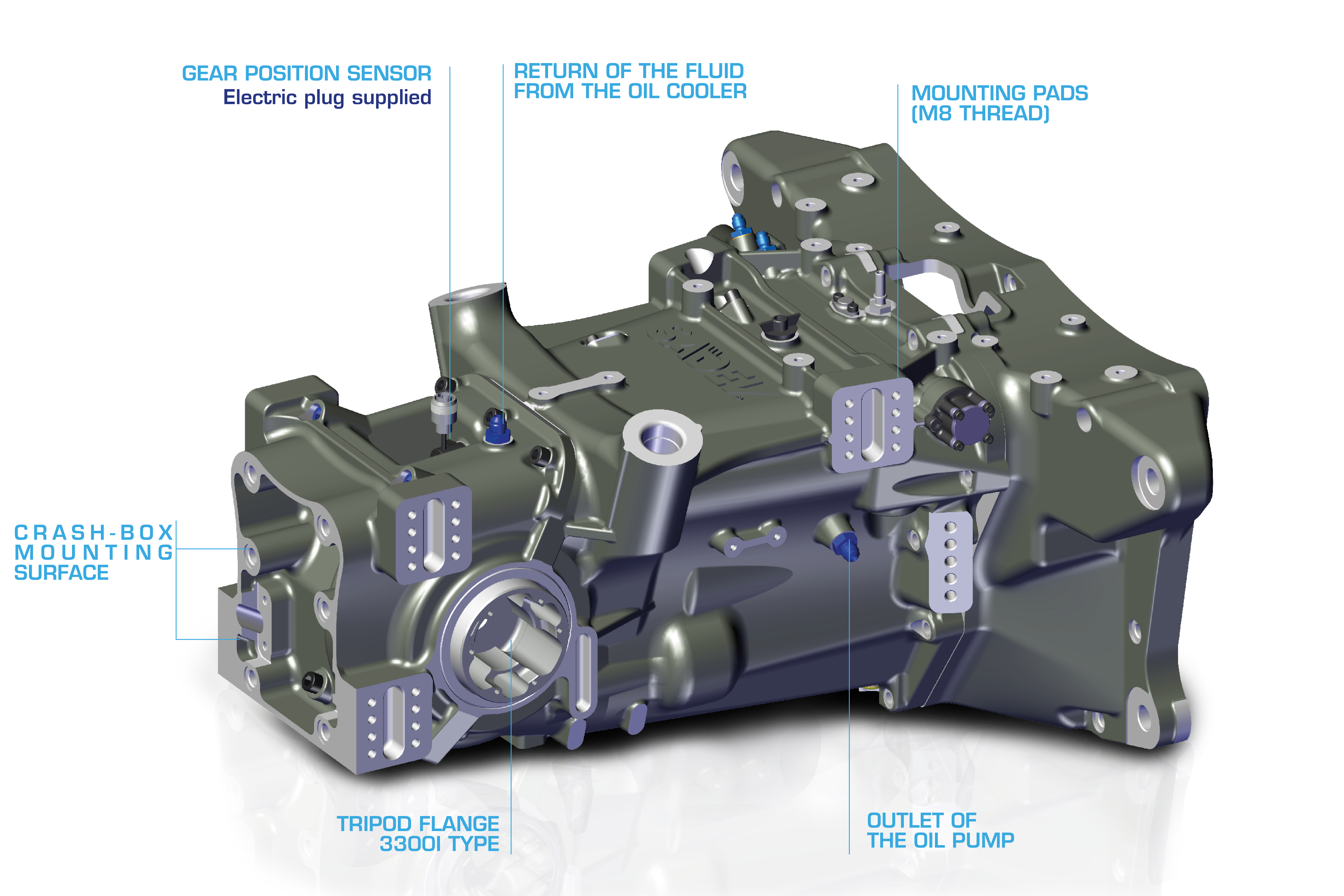

IMAGE DETAIL LEGENDE EN
IMAGE DETAIL LEGENDE VUE 2 EN

Accessories

  • Gear display
  • Push-pull cable
  • Mounting plate
  • Drive shafts
  • Hydraulic Paddle-shift

Applications

  • Circuit
  • Hill Climb
  • Endurance

Engine torque 700 N.m

APPLICATION TORQUE

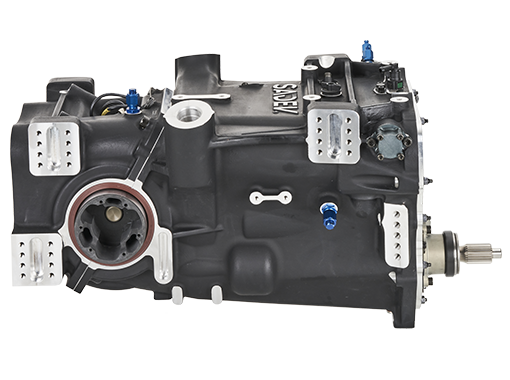

VISUEL SLIDER 1

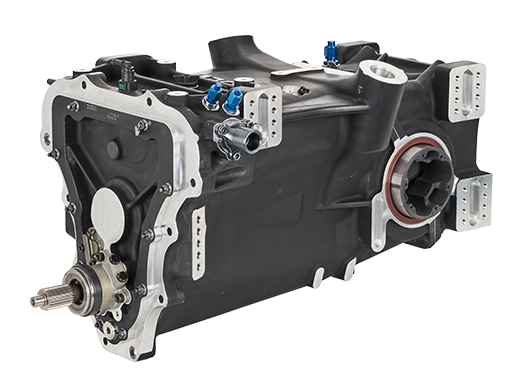

VISUEL SLIDER 2

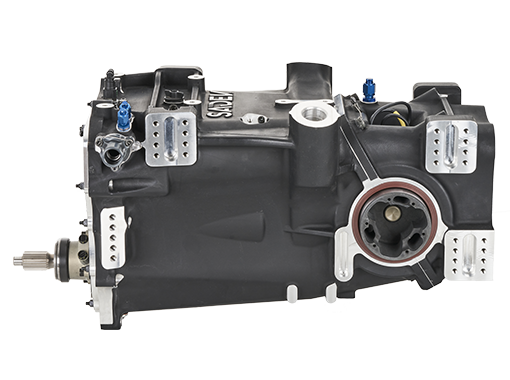

VISUEL SLIDER 3
