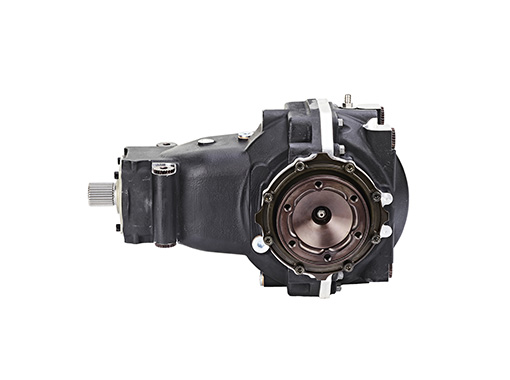

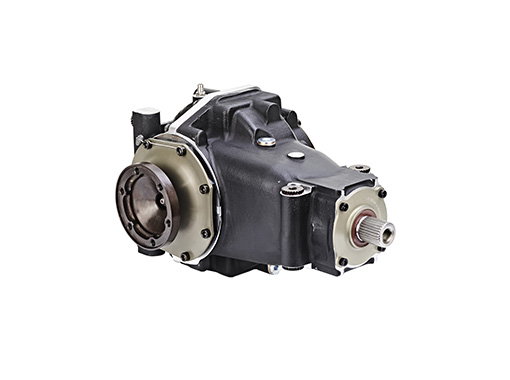

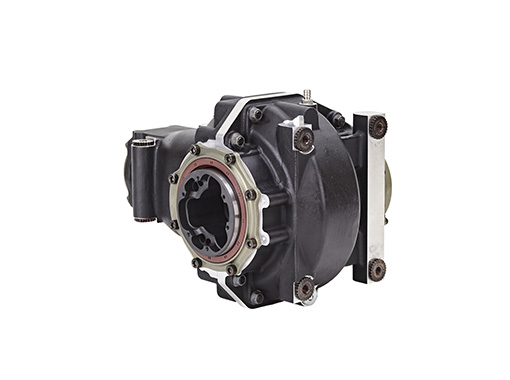

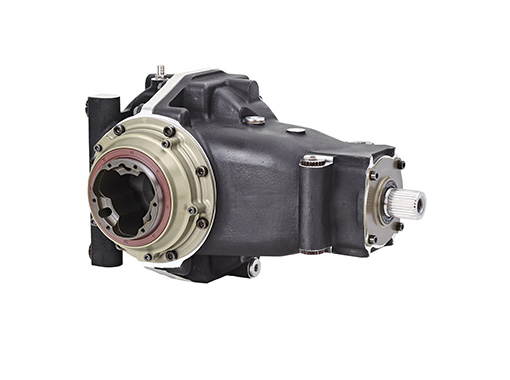

SP03 DIFFERENTIAL

Used for many applications, ranging from ice to circuit racing, the SPO3 differential is a resolutely versatile and reliable product that can be positioned at the front or rear of the vehicle. Offering a wide choice of possible configurations, it adapts easily to your needs.

TECHNICAL SPECS

  • Bevel gear ratio : 8x31, 10x29 or 10x33
  • The bevel gear is cut and grinded in house on our CNC units
  • High strength carburizing steel
  • Shot penning on internal parts

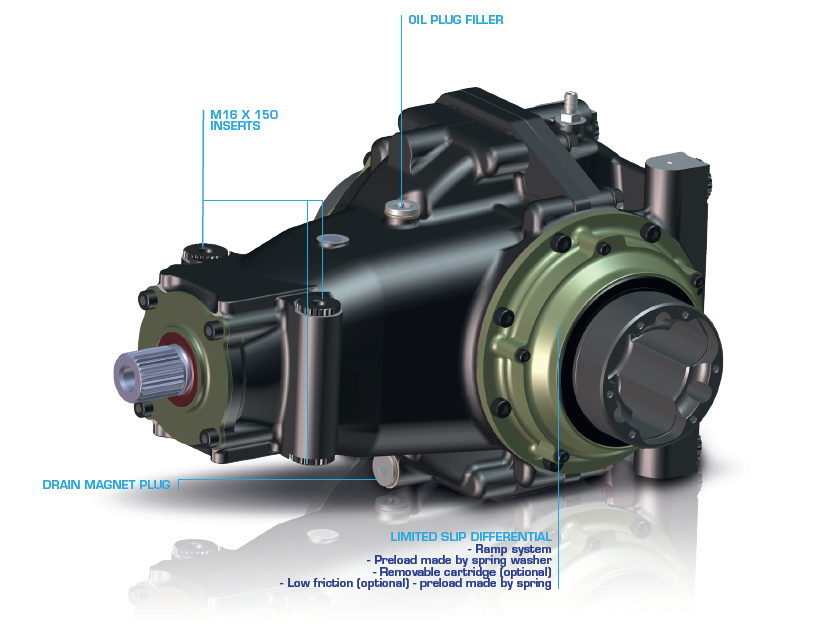

  • Limited slip differential (low friction optional)
  • Removable differential cartridge (optional)
  • Preload made by spring washer
  • Anti-friction coating on odd discs
  • Anti wear steel flat discs
  • Wide range of ramp plates available
  • Splash lubrication system

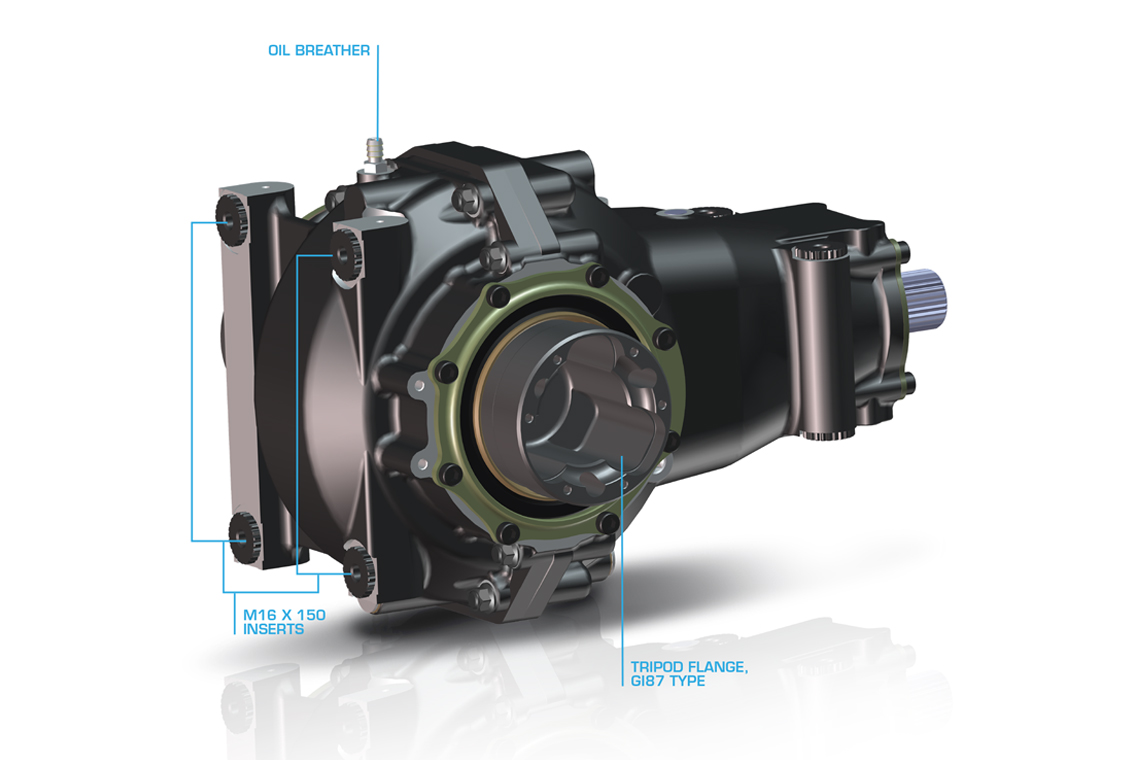

  • Magnetic drain plugs
  • Painted AS7G aluminum casings
  • Assembled with spacers and studs
  • Casing joint faces sealed with O'rings
  • 3 assembly possible : Centered - Offset on crown wheel side - Offset on opposite side of the crown wheel
  • Weight : 27 Kg - 59 lbs
imgdetail1eng1140x760px_sp03_01102018
imgdetail2eng1140x760px_sp03_01102018

Accessories

  • Drive shafts
  • Propshaft

Applications

  • Circuit
  • Hill Climb
  • Rally
  • Rallycross
  • Drift
  • Ice Racing

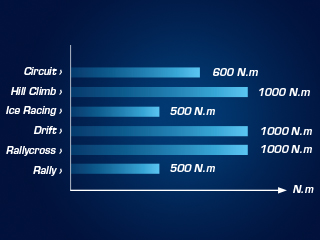

Engine torque 1000 N.m
